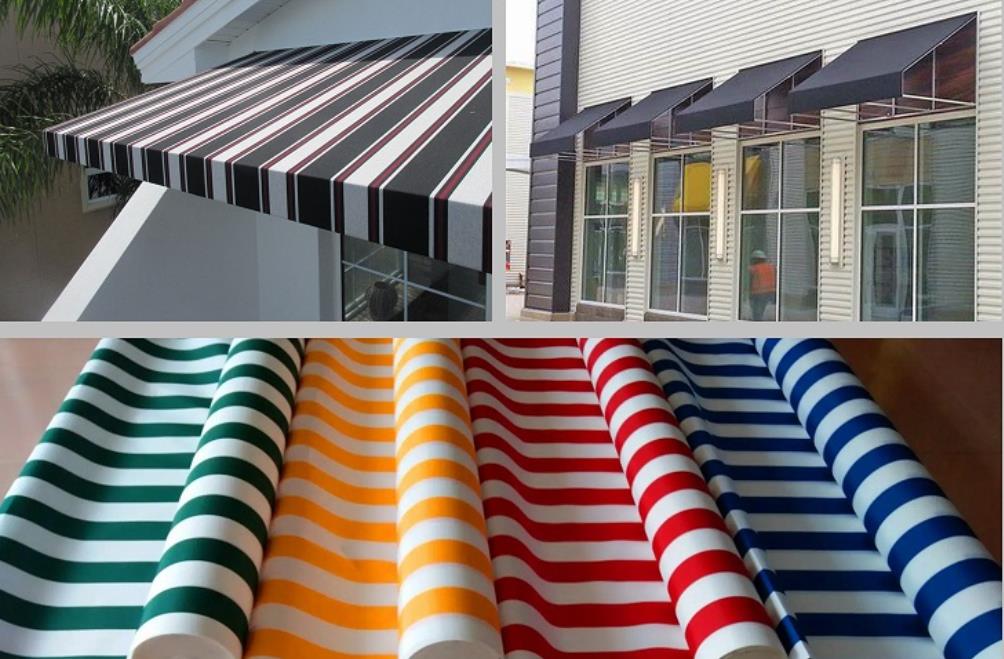

Outdoor awning fabric

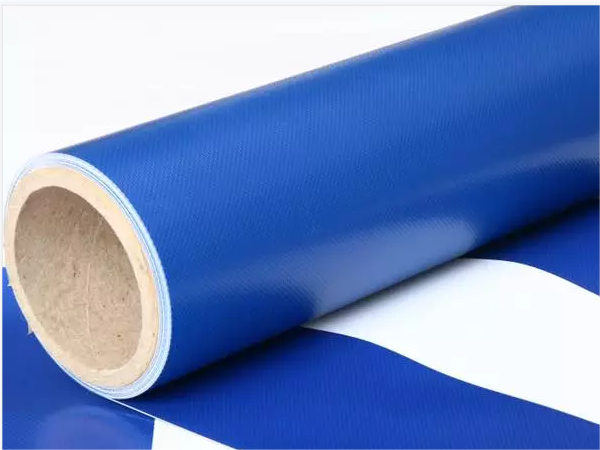

What is Outdoor awning fabric? What are the functions and uses of the PVC fabric for awnings?

The sunshade is a commercial product. The system uses a motor to drive the aluminum alloy coil to rotate, so that the fabric wound on the coil rises and falls. At the same time, the fabric is tightened by the spring force in the arm support rod. The maximum opening Angle of the system is 0~130 degrees. It can be operated by switch, remote control, scenery control and other control methods.

Commonly used gram weight: 260gsm, 400 g/430g/500g/510g,etc

utility

shading

Type of fabric

Polyester fabric, acrylic fabric, endurance plate

Group into

Sunshade, downspout, aluminum frame

Product use

The sunshade shed has a comprehensive external sunshade function, which can completely block UV radiation, reduce indoor temperature, reduce air conditioning load; It has energy-saving effect, which is of great significance from the perspective of energy saving and environmental protection. While shielding the hot summer, it can make the strong sunlight reflected into the room in the form of diffuse light, so that the indoor light is bright and not dazzling, and does not affect the landscape outside the window seen from the indoor, extending people's living space from the indoor to the outdoor, creating a new living space; The sunshade cloth has special anti-ultraviolet function, not only makes the human skin from ultraviolet attack, but also greatly extends the service life of interior decoration and furniture. The sunshade shed has a variety of colorful cover cloth patterns, colors, users can choose according to needs.

System matching

Coil tube is generally selected with a diameter of 50mm or 63mm with grooves round tube.

Fabric specification

Polyester fabric, acrylic fabric (can guarantee 5 years of non-fading).

Technical requirement

The width and height of a single size should not exceed 3m.

Science and technology element

The column frame design is changed, and the new sunshade adopts the barrier-free cable-stayed suspension design. The installation of the whole sunshade does not occupy the road surface of the non-motorized lane, and ensures the safety of cyclists while playing the function of sunshade.

The new awning is equipped with a video detection system (camera, display screen) and voice prompter. Once the non-motor vehicle crosses the line at the red light, the detection system will immediately take in and display the picture of the person crossing the line. At the same time, the system will remind the person crossing the line to return to the parking line with the voice of "You have crossed the line, please return to the parking line".

The roof of the shed is made of steel frame structure +PVC film, which is beautiful, strong and durable. After mechanical testing, it can resist the typhoon of Grade 12, and there is no need to remove it in typhoon season, which is suitable for Hangzhou all year round.

Product advantage

1. The sunshade shed has a comprehensive external sunshade function, which can completely block UV radiation, reduce indoor temperature and reduce air conditioning load;

2. Awning has energy saving effect. Awning is of great significance from the perspective of energy saving and environmental protection.

3. The awning has the special anti-ultraviolet function of its awning cloth. The awning has a variety of colorful cloth patterns and colors, which can be selected by the user according to their needs.

History of architectural shading

Shading has a significant and long-standing influence on buildings, both elegant classical buildings and free vernacular dwellings

Demonstrates a strong understanding of the importance of shading and uses it to create strong visual effects.

Up to now, there are shading components in the classic buildings of many architects, which shows the historical status of shading design in the treatment of building facades. The application of shading has a long history, which can be traced back to the writer Zanofen in ancient Greece

(Xenophon). He first raised the problem of having colonnades to block out the summer sunlight at a higher Angle and let in the winter sunlight at a lower Angle. In the first century BC, Vitruvius, in his architectural treatise "Ten Books on Architecture", was devoted to site selection

Throughout the chapter, advice is given to avoid southerly radiant heat.

During the Renaissance, Alberti's "On Architecture" also explained how to choose a location for sun protection in order to keep a room cool and comfortable. Richard Neutra was also an important promoter of the development of architectural shading. He was the first modern master architect who invited professionals to design all-weather building shading system based on meteorological data, thus promoting the application of architectural shading into a new era. In his later years, he made a deeper study on solar geometry and made breakthrough progress. In the Los Angeles Archives design, the sun's trajectory was mapped and various shading options were studied, culminating in a movable vertical shutter controlled by an automatic sun-tracking system on the roof.

Product composition

Sunshade shed series products unique shape, beautiful and generous, more outstanding is its high strength, high durability, UV protection and temperature insulation effect. According to JIS standards, snow resistance (loaded snow of 875px) and strong wind resistance (strong wind of 42m/s) are effectively taken into consideration in terms of safety.

Aluminum alloy frame and surface are made of high strength aluminum alloy material, and the connection between the column and the ceiling is reinforced with built-in galvanized steel structure, more secure and firm. The surface of aluminum alloy is treated by powder electrostatic spraying, and the oxidation resistance is more than 30 years.

Sun visor processing, through the double-sided co-extrusion process to add UV protection material (UV), can effectively block more than 98% of the UV, protect the car surface paint, but also can effectively control the temperature rise. At the same time also has flame retardant effect, and can be used for more than 30 years under the environment of -30℃ to 60℃ (137℃ thermal deformation phenomenon).

Downspout high strength aluminum alloy material, unique humanized design, avoid ceiling water falling to the ground to cause you the second pollution. Reasonable structure and easy to clean, can easily remove the dirt in the pipe.

Product classification

According to the driving mode: telescopic (manual, electric), fixed.

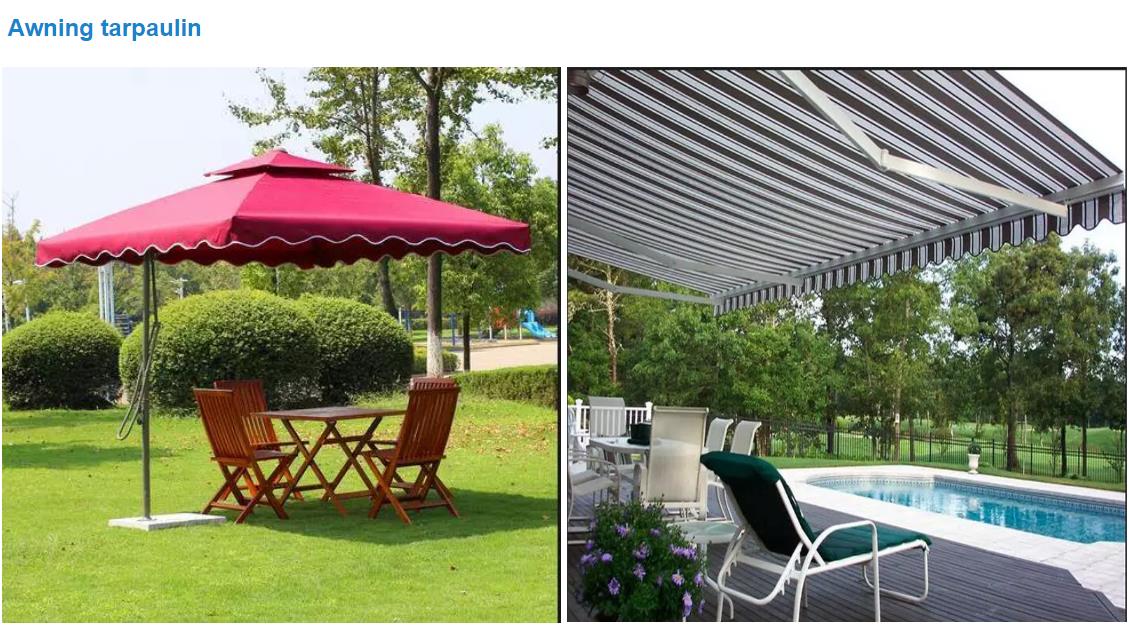

According to the type, it can be divided into: full box type curved arm awning, half hood type curved arm awning, open curved arm awning, slope awning, curved awning, watermelon awning, tent, banana umbrella, wooden umbrella, triangle awning, trapezoidal awning, curved awning, rectangular awning.

Design essentials

1. When the building has higher standard requirements, shading measures shall be taken if the following conditions are met.

(1) Indoor (outdoor) temperature reaches or exceeds 29℃;

(2) Solar radiation intensity >240kcal/m2·h (1004.6 kJ/m2·h);

(3) the depth of sunlight in the room is greater than 0.5m;

(4) The time of sunlight in the room is more than 1 hour.

2. Awning is suitable for shading outside doors and Windows of low-rise and multi-storey buildings. Not suitable for shading outside tall buildings.

3. The material, thickness, size and form of sunshade material, the form and size of fixed device, the power of motor (when electric), the size of the wind pressure of the use place and so on are related to each other. According to the specific project situation, the relevant technical data should be obtained from professional manufacturers, and the selection should be made after comprehensive consideration.

4. The connection between the shading system and the main body of the building, lightning protection measures and other safety issues need to be studied and determined jointly by the engineering designer and the professional manufacturer according to the specific project situation.

5. The shading system with rolling screen box should consider the influence of different locations of rolling screen box on wall energy saving.

6, for the system equipped with automatic control, the general requirements must be installed risk control, rain control induction device, light control can be selected according to the specific situation. Manual drive is generally not suitable for outdoor sunshade in often unmanned places.

7. It is recommended to use dark color of fabric (or to face the dark side of fabric outdoors) to achieve better shading effect.

8. Performance requirements of fabrics

(1) The fabric shall ensure constant size and no deformation.

(2) The surface of the fabric is smooth and smooth, to ensure that the winding is free, to prevent the fabric from running off, wrinkling or winding is not smooth and other phenomena.

(3) The fabric should have sufficient tensile and tearing strength to prevent the risk of being torn in harsh weather conditions.

(4) The connection between fabrics should adopt the process of hinge frequency welding to ensure that the fabric has enough strength.

(5) The fabric should be guaranteed to have good color fixation.

(6) Fabric surface should have a certain anti-pollution performance, and easy to clean, simple and convenient maintenance.

9, fabric type: polyester coated fabric, glass fiber coated fabric.

Anhui DERVINYL New Material Technology Co., LTD

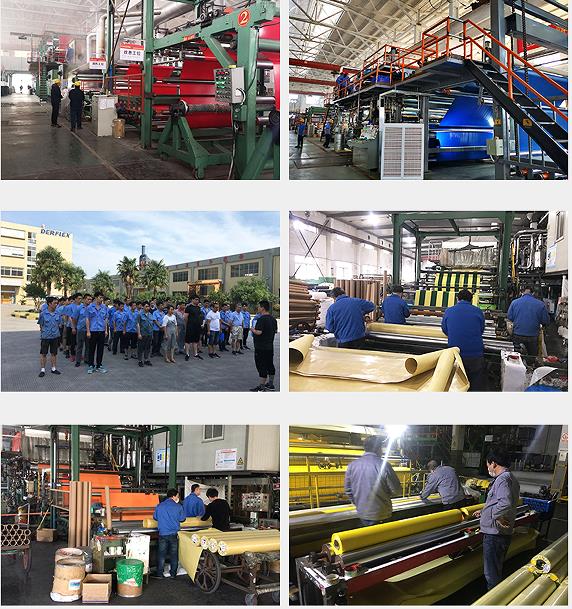

We are China's main PVC light box cloth manufacturers, but also PVC film, PVC tarpaulin manufacturers, with high quality professional production equipment, the production of PVC digital printing materials. We have 60,000 square meters of production site, registered capital of 25 million US dollars, 3 calender production lines, 3 sets of coating equipment, 5 laminating machines, 25 engineering and technical personnel, and 450 production personnel.

Our line of DERVINYL products includes laminated front lighting cloth, high-strength fiber lighting cloth, smooth lighting and back lighting cloth, shading cloth, mesh cloth, single permeable film, knife scraper cloth, perforated PVC fabric, self-adhesive PVC film, textile fabric, truck tarpaulin, tent cloth, and more.

Based on 20 years of production and sales experience, Anhui Yan New Material Technology Co., Ltd. adhere to the customer first, service first purpose.

1. Using high quality PVC new material, environmental protection plasticizer, high strength yarn, do not use any raw materials that do not meet customer requirements

2. Perfect regular maintenance mechanism of machinery and equipment, and regular elimination mechanism of defective parts

3. Strict product inspection, the implementation of 24-hour real-time product inspection, defective products never leave the factory

4. All production in accordance with ISO9001 14001 standards, export products in line with the relevant national standards

5.DERVINYL products have been exported to North and South America, Europe, the Middle East, and Southeast Asia
