PVC-Coated Fabrics for Architectural Fabric Structures

Introduction

PVC-coated fabrics are widely recognized as one of the most reliable and versatile materials for architectural fabric structures. From iconic stadium roofs to large-span exhibition halls and innovative tensile membrane canopies, PVC architectural fabrics provide a durable, weather-resistant, and cost-effective solution that combines functionality with aesthetic design. With advanced coating technologies, these fabrics offer excellent tensile strength, UV resistance, flame retardancy, and long service life, making them ideal for both permanent and temporary structures.

Why Choose PVC-Coated Architectural Fabrics?

1. High Strength & Dimensional Stability
PVC-coated polyester fabrics are engineered with high-tenacity polyester yarns and precision coating processes. They ensure outstanding tensile and tear resistance, maintaining stability under heavy wind, rain, and snow loads.

2. Weatherproof Performance

o 100% waterproof & airtight

o UV-resistant to prevent degradation under sunlight

o Withstands extreme temperatures (–30°C to +70°C)

3. Flame Retardant Safety
Our fabrics meet B1, M1, NFPA 701, DIN 4102 flame retardancy standards, ensuring compliance with international safety requirements for public spaces.

4. Surface Treatments for Extended Life

o PVDF lacquer or acrylic coating prevents dirt accumulation, enhances self-cleaning ability, and improves resistance against fungus and mold.

o Anti-yellowing technology ensures long-term color stability, maintaining the fabric’s bright and clean appearance for years.

5. Design Flexibility
PVC architectural fabrics can be shaped into complex 3D tensile membrane structures. Architects can achieve creative, lightweight, and futuristic designs while minimizing steel framework requirements.

Technical Specifications

· Width available: up to 5.0m seamless, with high-frequency or hot-air welding for wider spans.

· Colors: White (most popular for high light transmission), Grey, Beige, Custom Colors available.

· Light Transmission: 8–20% depending on coating and color.

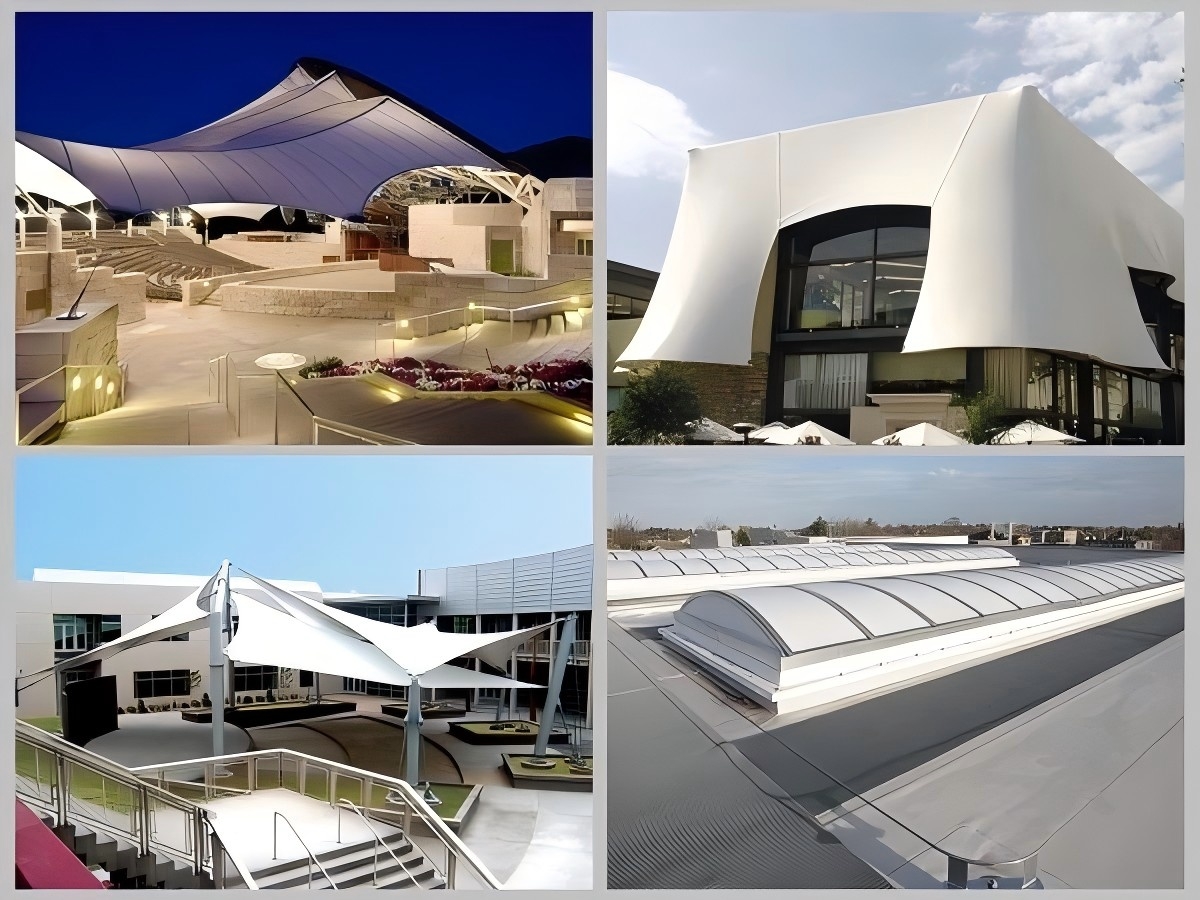

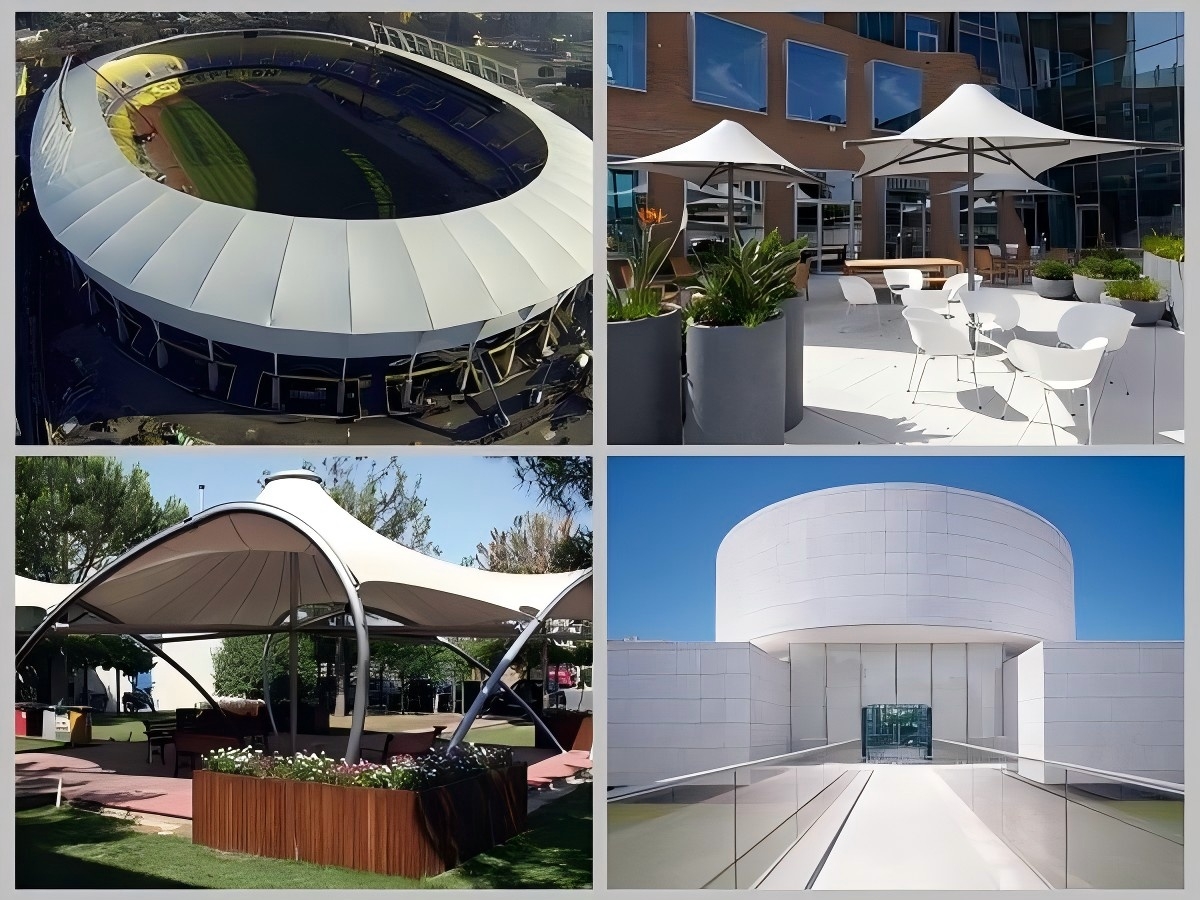

Applications of PVC-Coated Architectural Fabrics

1. Tensile Membrane Structures
Ideal for outdoor canopies, shade sails, and architectural landmarks. PVC fabrics enable bold and artistic shapes while maintaining durability.

2. Stadium & Arena Roofing
Large-span roofs require lightweight yet strong materials. PVC-coated fabrics reduce steel usage while providing reliable protection against rain and UV exposure.

3. Exhibition Halls & Event Structures
Quick to install, easy to relocate, and visually impressive, PVC architectural fabrics are widely used for trade fairs, expos, and temporary halls.

4. Walkways, Facades & Skylights
With excellent translucency, PVC fabrics allow natural daylight diffusion, reducing energy consumption while providing comfort.

5. Industrial & Commercial Shelters
Warehouses, logistics centers, and dome shelters often use PVC fabric membranes due to their strength, weather resistance, and cost-efficiency.

Advantages Over Alternative Materials

· Compared with PTFE: PVC-coated fabrics are more economical, easier to weld, and suitable for mid- to long-term projects.

· Compared with ETFE: PVC provides better insulation, flame retardancy, and higher mechanical strength, while ETFE focuses more on transparency.

· Compared with traditional roofing: Lightweight PVC structures reduce foundation loads, enable faster installation, and allow flexible relocations.

Sustainability & Environmental Responsibility

Our architectural PVC-coated fabrics are produced with eco-conscious polymer chemistry, offering:

· Recyclability at the end of service life

· RoHS and REACH compliance

· Long lifespan reducing resource consumption

Some models are also available with low-VOC and phthalate-free formulations, making them suitable for green building projects.

Conclusion

Whether you are designing a membrane stadium roof, a dome shelter, or a lightweight exhibition canopy, our PVC-coated architectural fabrics deliver a perfect balance of performance, safety, and aesthetics. With advanced PVDF surface treatments, flame retardancy, and proven long-term durability, these fabrics represent the ideal choice for modern architectural fabric structures worldwide.

Contact our team today to request samples, specifications, or customized solutions for your architectural projects.
