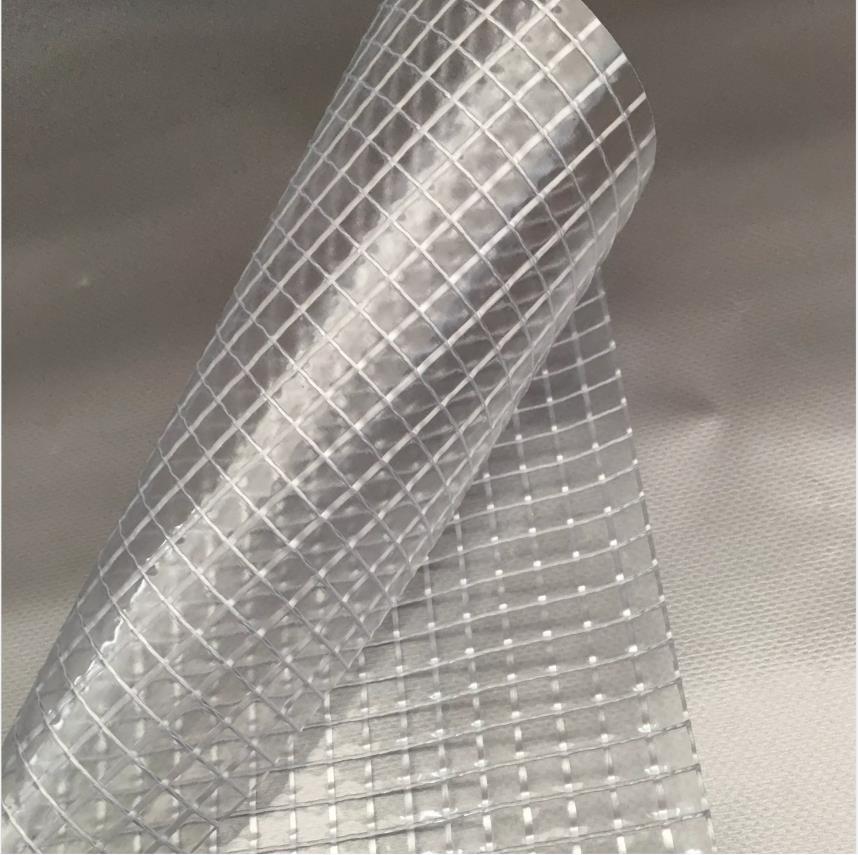

I. What is transparent PVC mesh material?

PVC transparent mesh material is made of two layers of PVC film with polyester fiber added through composite/coating and other processes.

It strengthens the strength of the transparent film and produces a strong three-dimensional perspective effect.

Processing methods: sewing, hot air melting and high frequency welding

It is also waterproof and With the advantages of:

Tear resistance, good tensile strength, moisture resistance, and anti-aging

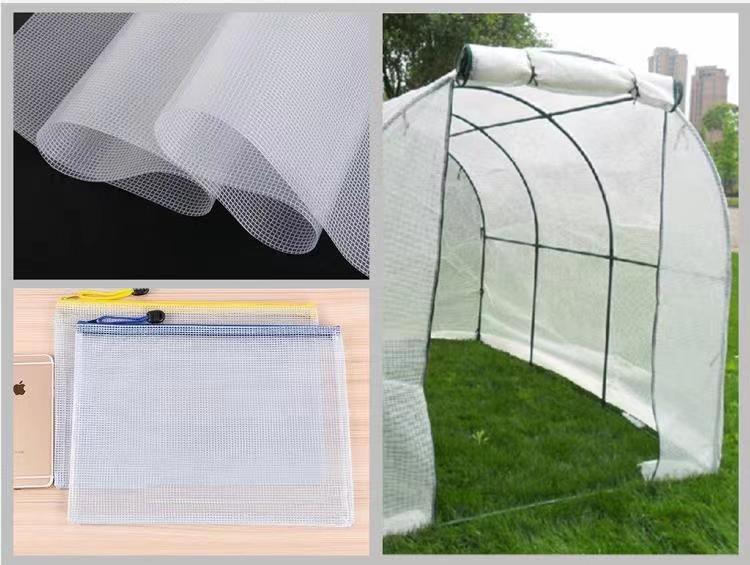

It is widely used in:

Bags, handbags, stationery bags, inflatable toys, shoe materials, clothing, water supplies, waterproof bags, transparent tents, etc.

II. Common specifications of PVC transparent waterproof mesh:

Product thickness:0.30-1.50mm

Product weight:240-1500g/㎡ (can be customized)

Base fabric specifications:200*200/9*9;300*300*9*9;500*500/9*9;

1000*1000/9*9;1000*1000/3*3;1000*1000/4.5*4.5;1000*1000/6*6

Effective width: Conventional door width 1.37m/1.52M/1.83m wide can be 3.20M

Packaging roll length: 50M/100M

Minimum order quantity:3000meters

III.3*3 PVC transparent mesh technical date sheet

Base fabric specification 1000D*1000D

Base cloth density 3*3 Threads/Inch2

Gram weight 350-600 gsm

Tensile strength L: 600 N/5CM,W：600,W: 80

Tear strength L: 80 N/5CM

Peeling degree 80 N/5CM

Fire protection grade B1/B2/M1/M2/NFPA701 can be customized

About DER

Located in Zhangbaling Industrial Park, Mingguang City, covering an area of 30,000 square meters

specialized in the production and sales of plastic products for 25 years.

The most advanced tarpaulin manufacturing equipment in the country

The most complete product manufacturing process

The most scientific raw material production line
