Der factory supplies PVC coated polyester fabric for inflatable tents that must deploy quickly, hold their shape, tolerate repeated folding and create dependable welded seams. Material construction can be matched to portable event tents, emergency shelters, promotional domes and industrial air-frame systems.
Inflatable tent PVC fabric is not selected by GSM alone. The finished air beam depends on the interaction between the polyester reinforcement, PVC barrier layers, coating adhesion, surface treatment and weld window. A material that looks heavy can still perform poorly when the base yarn stretches unevenly or the coating separates near a seam.
Der factory configures the construction according to the pressure system, panel geometry and handling cycle. For applications where air retention is the primary requirement, review our airtight fabrics for inflatables. For larger pressurized buildings, compare the requirements of PVC inflatable membrane structures.
Commercial buyers should evaluate the finished air-beam system rather than relying on a single headline specification. These six factors have the greatest influence on manufacturing efficiency and field performance.
Uniform PVC layers help reduce slow pressure loss in sealed beams and support stable shape in continuous-air structures.
Stable coating thickness and adhesion make it easier to tune high-frequency, hot-air or hot-wedge welding without surface burning or weak bonds.
High-tenacity yarn and balanced weave construction slow tear growth around valves, corners, attachment points and folded areas.
The compound can be adjusted for a softer hand and low-temperature flexibility, helping portable tents withstand packing and redeployment cycles.
Optional UV, anti-mildew and weathering packages support use at exhibitions, camps, worksites and temporary response locations.
Color matching, printed graphics, matte or glossy finishes and embossing allow the tent skin to combine technical performance with visual identity.
A sealed-air camping beam and a blower-supported promotional tent do not place the same demand on the material. Defining the pressure system before sampling prevents unnecessary weight and reduces seam-development time.
Prioritize coating continuity, air permeability, weld peel strength, dimensional stability and valve-zone reinforcement.
Prioritize handling weight, abrasion resistance, print quality, tear resistance and easy repair while maintaining enough coating for dependable seams.
The following configurations are practical starting points for development. Final values should be confirmed by approved sample, production TDS and the buyer’s own seam and pressure testing.
| Recommended Use | Typical Weight | Base Fabric | Approx. Thickness | Width | Suggested Priorities |
|---|---|---|---|---|---|
| Portable event / light air-beam tent | 550–650 g/m2 | 840D or 1000D polyester | 0.45–0.55 mm | 1.5–3.2 m | Lower packed weight, flexibility, print surface, fast welding |
| Commercial inflatable tent | 700–850 g/m2 | 1000D, balanced weave | 0.55–0.70 mm | 1.5–3.2 m | Air retention, seam strength, tear resistance, repeated handling |
| Emergency / industrial air-frame shelter | 850–1000 g/m2 | 1000D–1300D polyester | 0.70–0.85 mm | 1.5–3.2 m | Mechanical strength, cold flexibility, FR option, repairability |
| Large pressurized membrane enclosure | 900–1100+ g/m2 | High-density 1000D–1300D | 0.75–0.95+ mm | Project specific | Structural stability, weathering, surface protection, engineering data |
Typical customization range: color matching, matte/glossy surface, lacquer or functional topcoat, anti-UV, anti-mildew, anti-cold, flame-retardant formula, embossed texture, printable surface, roll length and OEM packaging. For general tent roofs and sidewalls that do not form an air chamber, see PVC tent fabric.
A successful OEM program starts with a controlled sample rather than a generic roll. Der factory can adjust the construction around the buyer’s machine settings, desired hand feel, operating climate and target product life.
The construction can be tuned for transport frequency, pressure retention, outdoor exposure, appearance and regulatory requirements rather than forcing every tent into one standard specification.

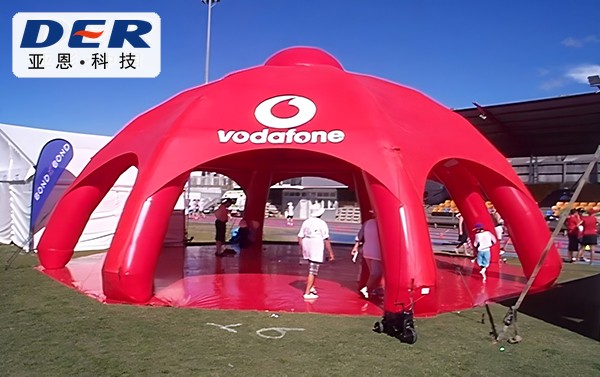

Branded inflatable pavilions, sponsor tents, trade-show booths and entrance structures requiring a clean printable surface.
Rapid-deployment medical, rescue, command and disaster-response tents where setup speed and dependable air beams are essential.
Portable family or glamping tents that need low packed weight, repeated-fold flexibility and user-friendly inflation.
Air-frame field shelters with custom color, low-temperature options, reinforced panels and project-specific flame-retardant requirements.
Temporary work cells, maintenance shelters, decontamination units and protective spaces used at construction or industrial sites.

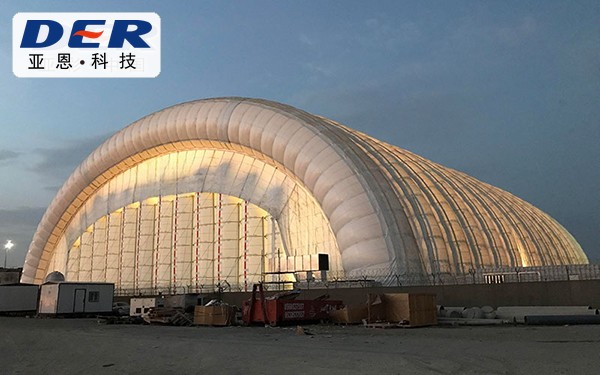

Promotional domes, sports covers and larger pressurized enclosures that require heavier fabric and engineering-led material selection.
Test reports should match the approved production formula and intended market. Der factory can discuss project-specific inspection and third-party testing instead of treating one certificate as suitable for every color, thickness and application.
Production and inspection can be documented through controlled specifications, approved samples and batch records. Company quality-system documents can be discussed during supplier qualification.
B1, M2, NFPA 701 or other test directions may be discussed according to destination and use. Compliance must be confirmed by a report for the final material construction.
REACH, RoHS, phthalate-related or customer-specific substance requirements can be reviewed before formulation and sampling.
Optional UV and aging packages can be selected according to color, climate, expected exposure and target service conditions.
Answers for tent manufacturers, sourcing teams, fabricators and distributors evaluating a custom PVC material.
The right weight depends on tent size, operating pressure, exposure and transport requirements. Portable event or camping air-beam tents often use lighter constructions, while emergency, industrial and large commercial shelters normally need heavier yarns, denser weaves and thicker PVC layers. Confirm the design pressure and seam construction before choosing GSM.
Yes. Sealed-air beams require stronger air retention and carefully matched welding performance. Continuous-air structures can place more emphasis on flexibility, abrasion resistance, printing and low handling weight. The PVC formulation, base fabric and coating thickness can be adjusted for either construction.
PVC coated polyester is commonly fabricated by high-frequency welding, hot-air welding or hot-wedge welding. Temperature, speed, pressure and overlap must be validated on production samples because the optimum process window changes with coating formulation, thickness and surface finish.
Flame-retardant formulations and project-specific testing can be discussed. State the destination market, tent use and required standard before sampling, because compliance depends on the final formulation, color, thickness and tested construction.
Yes. Available development options include custom color matching, glossy or matte finishes, anti-UV and anti-mildew treatments, embossing, printed graphics, roll width, roll length and OEM packaging. Minimum order requirements vary by formula and color.
Provide the tent type, sealed-air or continuous-air design, target GSM or thickness, base fabric specification, width, color, annual quantity, expected climate, welding method, required test standards and whether you need fabric rolls or fabricated panels.
Share the air-beam diameter, pressure system, target weight, welding process and required market standard. Der factory will help narrow the construction before sample development.
