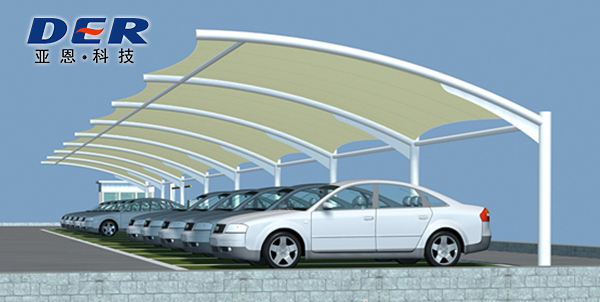

PVDF high-end carport membrane material is a premium architectural tensile fabric engineered for modern parking structures, carports, and shading systems. Manufactured by this material combines exceptional mechanical strength, long-term weather resistance, and elegant architectural aesthetics.
With growing demand for sustainable, lightweight, and visually striking carport solutions, PVDF coated membrane fabric has become the preferred choice for architects, engineers, and project developers worldwide.
PVDF (Polyvinylidene Fluoride) carport membrane material is a high-performance polyester base fabric coated with PVC and finished with a PVDF surface layer. This advanced surface treatment significantly enhances durability, self-cleaning ability, and resistance to UV radiation and chemical exposure.
Unlike conventional PVC fabrics, PVDF membranes offer superior lifespan and maintain their appearance even after years of outdoor exposure, making them ideal for permanent or semi-permanent carport structures.
PVDF coated membrane material is designed to withstand extreme environmental conditions, including strong sunlight, heavy rain, snow, and temperature fluctuations. The PVDF surface layer acts as a protective shield, preventing degradation and discoloration.
The reinforced polyester base fabric provides excellent tensile strength, tear resistance, and dimensional stability. This allows the membrane to safely support large-span carport structures without excessive steel framing.
The smooth PVDF surface prevents dust, pollutants, and bird droppings from adhering firmly. Rainwater naturally washes away surface dirt, significantly reducing cleaning costs over the lifetime of the structure.
PVDF membrane fabrics retain color brightness and surface integrity even after long-term exposure to sunlight, making them suitable for both functional and decorative carport designs.
| Parameter | Typical Range |
|---|---|
| Base Fabric | High-strength polyester |
| Coating | PVC + PVDF top layer |
| Total Weight | 750 – 1200 g/m² |
| Tensile Strength | Up to 5000 N / 5 cm |
| Fire Retardancy | Optional (DIN, B1, NFPA) |
| Service Life | 15–25 years (project dependent) |
PVDF high-end membrane materials are widely used in a variety of architectural and commercial applications:
PVDF membrane material allows architects to create elegant, flowing forms that are impossible with traditional building materials. Available in a wide range of colors and surface finishes, the membrane can be customized to match branding, architectural themes, or urban landscapes.
At Der factory, PVDF carport membrane material is produced using advanced coating and surface treatment technology. Each production stage is strictly controlled to ensure consistent thickness, adhesion, and mechanical performance.
Comprehensive quality inspections include tensile testing, peel strength testing, UV aging simulation, and surface performance evaluation.
Our PVDF membrane materials can be manufactured to comply with major international standards and project requirements:
As a professional manufacturer, we support OEM, ODM, and project-based customization:
PVDF membrane materials are rolled with protective inner liners and packed in reinforced packaging suitable for long-distance sea and land transportation. Export-ready packaging ensures materials arrive in perfect condition.
If you are planning a high-end carport or architectural tensile structure project, our technical team is ready to provide professional material recommendations and support.
