Update time:2026/11/9 15:05:05 Views:0

Curtainsider materials · Trailer builders · OEM fabricators

PVC Truck Curtain Fabric & Custom Side Curtains

Specify PVC-coated polyester curtain material for truck side curtains, curtainsider trailers, replacement panels and printed fleet covers. DER factory supports project-based choices in fabric weight, roll format, color, coating finish and fabrication requirements.

  • 650–900 GSM reference range
  • Waterproof fabric construction
  • Weldable PVC coatings
  • Printable finish options
Blue PVC-coated polyester fabric with folded edge for truck side curtain material evaluation
Original DER factory PVC-coated polyester material photo. Selection of curtain-specific structure and surface finish requires project review.
Roll FabricFor curtain makers and conversion plants
OEM ProgramsPanel geometry, color, finish and labels by review
Durability FocusCompare tear, tensile, adhesion and flex—not GSM alone
Fleet GraphicsPrintable lacquer and ink compatibility sample

Direct product answer

What Is a PVC Truck Curtain?

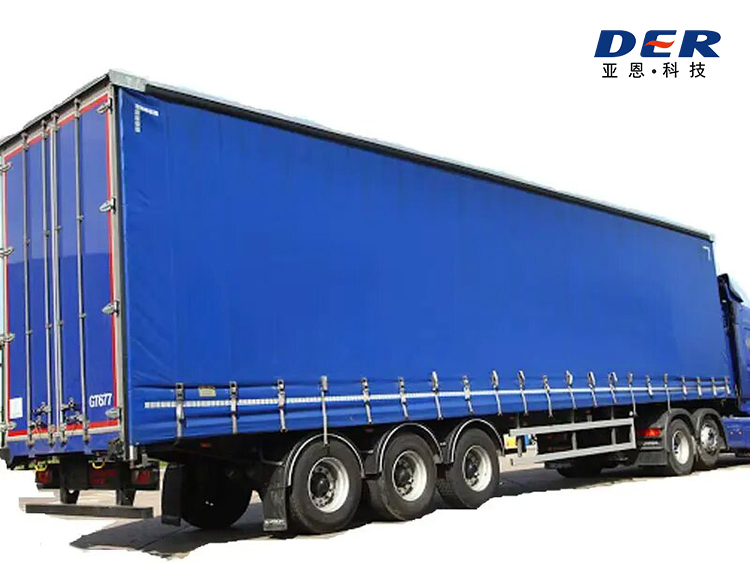

A PVC truck curtain is a flexible sidewall panel used on curtain-sided trucks and trailers. Most designs start with high-tenacity woven polyester coated on both sides with polyvinyl chloride (PVC), then add top attachments, reinforced hems, straps and closures appropriate to the trailer. The curtain slides or gathers to provide side access for loading, while its PVC surface shields goods from rain, road spray and dirt. For importers, trailer builders and repair shops, DER factory provides a sourcing point for coated material rolls and project-specific curtain fabrication discussions. Curtain fabric is not automatically a certified cargo-restraint system.

01 / ACCESS

Rapid side loading

Sliding side panels allow forklifts to approach palletized freight from the vehicle side, unlike a fixed rigid wall.

02 / PROTECTION

Weather-resistant enclosure

PVC-coated polyester protects the load area, while seam layout and fitting control the actual water-entry points.

03 / FABRICATION

Reinforced curtain assembly

Top track, pole contact, strap loads and lower buckle zones require more attention than the center of the sheet.

Material engineering

PVC-Coated Polyester Is the Core Material

A truck curtain is a moving tensioned panel, not a static warehouse cover. High-tenacity polyester yarn contributes tensile and tear performance; PVC coating provides a weldable protective surface. Lacquer and additives can be considered for outdoor exposure, dirt release, printing or cold flex, subject to sample approval.

For a detailed explanation of coating and base cloth selection, compare DER factory’s PVC-coated fabric products. If you need a separate flatbed or dump-body cover rather than a curtainsider sidewall, review the truck tarp solutions.

  • Base scrim: yarn size, weave type and yarn density affect strength and dimensional behavior.
  • Coating: double-sided PVC supports weather protection and welding; adhesion must be checked.
  • Finish: matte, gloss, lacquer and print-compatible surfaces serve different fleet programs.
  • Assembly: webbing, patches, belts and closure hardware are designed with the trailer system.

Typical three-layer construction

Conceptual layer guide — not a test section or a fixed DER factory SKU.

Front PVC coating / surface finishWeather exposure, color and optional print lacquer
Woven polyester reinforcementWarp and weft structure controls the load path
Back PVC coatingFlexible back surface and weldable substrate

Specify test methods and minimum results for each construction instead of assuming a weight number proves performance.

Where service problems start

Six Performance Requirements for Working Curtains

Trailer movement concentrates damage at specific zones. Use these requirements to explain failure risks to a fabric supplier before production.

01 / TENSION

Warp & weft tensile strength

Check length and width direction results in a stated test method. Large curtain runs and buckle tension can load the fabric differently.

02 / FASTENING

Tear strength near straps

Ask for tear data and a reinforcement detail around buckles, vertical posts, top rollers and strap termination points.

03 / BONDING

Coating adhesion & seams

Evaluate PVC-to-scrim adhesion and representative welded seam peel on the actual material, not an unrelated generic tarp.

04 / OPERATION

Cold flex & repeat folding

Define coldest operating temperature and expected opening cycles. A heavy panel that stiffens can be difficult to move.

05 / EXPOSURE

UV, color & cleaning

Outdoor surface options should match climate, cleaning chemicals, color retention needs and graphics maintenance.

06 / SYSTEM

Fit, overlap & drainage

Waterproof sheet material cannot fix poor front/rear overlap, missing flap protection or damaged closure hardware.

Application-to-specification mapping

650 GSM vs 750 GSM vs 900 GSM: How to Choose

For truck curtain material, the usual commercial discussion spans approximately 650–900 grams per square meter (GSM). These are general industry starting points, not verified DER factory stock SKUs or a guarantee that one grade is stronger.

Project conditionStarting directionWhat to verify on the sample
Routine regional fleet, frequent openingAbout 650–750 GSM; prioritize manageable curtain weight and good flexibilityTop hem geometry, buckle-zone tear, cold flex and roll width
Mixed-route logistics with logo graphicsAbout 750–850 GSM; specify a suitable print lacquer and weathering levelInk adhesion after cleaning, fold-line cracking, color matching and seam appearance
Large curtain panel, repeated abrasion or long-haulAbout 850–900 GSM; compare the reinforced base construction, not weight aloneTear and tensile data, welding, roller drag and completed panel mass
Cold climate or project-specific fire criteriaChoose formulation and testing first; GSM is secondaryLow-temperature flex, requested fire standard, evidence for the final construction

GSM measures mass per square meter. It is not a direct substitute for millimeter thickness, tensile strength or lifetime. Read the GSM, oz and mil measurement guide before comparing supplier quotations.

A useful weight calculation for a single side curtain

Illustrative panel: 13.6 m × 2.65 m = 36.04 m², before hems and waste. Fabric-only mass at 650 GSM ≈ 23.43 kg; at 900 GSM ≈ 32.44 kg. The heavier fabric adds about 9.01 kg per side, before rollers, webbing, buckles, print and seam layers. This is a sizing example, not an actual truck curtain model or DER factory performance claim.

Buyer data sheet

PVC Truck Curtain Technical Specification Checklist

Use this table when comparing PVC truck curtain suppliers. Values marked “project-dependent” must be confirmed on the technical data sheet or approved sample before an order.

ParameterSelection / quotation fieldPurchasing implication
Product / usePVC truck curtain fabric for curtainsider and trailer side curtainsDifferent from a flat cargo cover or a complete track assembly
Base fabricHigh-tenacity woven polyester; yarn count and weave to be specifiedRequest warp/weft tensile and tear results
CoatingDouble-sided PVC coated polyester; laminated variants evaluated separatelyCheck coating adhesion, weldability and surface consistency
Weight / GSMApprox. 650–900 GSM common market reference; final grade quoted after reviewCompare loading and handling mass with the minimum required strength
ThicknessMeasured mm value: to be confirmed with actual constructionDo not infer thickness by converting GSM directly
Roll width & lengthProject-dependent; request usable coated width and roll tolerancesControls seam placement and conversion waste
Colors & finishStandard or custom color, gloss / matte, optional lacquer or printing surfaceConfirm Pantone/RAL reference against physical samples
Strength requirementsTensile, tear and coating adhesion — minimum test values by agreementUse stated ISO/EN/ASTM methods, directions and tolerances
Operating environmentExpected sun, temperature, cleaning, road contamination and bending cyclesSelect UV / cold-flex / finish requirements before production
Fire behaviorOptional testing against a named standard, if neededOnly claim compliance after checking current evidence
FabricationRoll goods, cut panels or project-based welded curtain designSpecify seams, straps, hems, buckles and top attachment drawing
Packaging & orderRoll ID, labeling, quantity, shipment method and destinationConfirm packing method, MOQ and lead time in the quotation

No listed range should be read as guaranteed current inventory, certified compliance or fixed factory output. For wider truck-cover material selection, see truck tarpaulin materials.

OEM and fabrication

Order by Roll, Panel or Finished Curtain Requirement

The right supply format depends on whether you manufacture trailers, convert coated fabric or replace curtains in an existing fleet.

Coated fabric rolls

For converters who already cut, weld and assemble curtain-side panels. Prioritize consistent usable width, repeatable color, roll edges and seam qualification.

RFQ: GSM, scrim, width, color, finish, print direction, rolls and destination.

Cut or semi-finished panels

For workshops that need defined cuts or welded sections. Review panel flatness, lap placement, orientation and the allowance for later assembly.

RFQ: finished size drawing, panel orientation, seam plan and tolerance.

Project-specific complete curtains

Where full fabrication is requested, confirm feasible hardware integration, straps, pockets, top attachment and final fit before quotation. No generic ready-made size is assumed.

RFQ: trailer model, photos, track, strap positions, closures and logo artwork.
Different colors of PVC tarpaulin rolls for OEM side curtain fabric selection
DER factory PVC tarpaulin roll photo: specify coating, useful width and repeatable color for curtain production.

What to Measure Before Cutting a Side Curtain

  • Overall opening length and effective finished curtain drop.
  • Top roller, hook or track attachment style and spacing.
  • Front/rear closure type, flap overlap and clearance.
  • Bottom buckle pitch, strap width and hem depth.
  • Vertical post positions, reinforcement patches and high-wear zones.
  • Print-safe field, edges, seam allowances and expected trimming loss.

For mixed production orders, provide one approved master drawing per truck model and photograph key hardware. For custom accessories and manufacturing formats, explore custom tarpaulin fabrication and reinforced attachment design.

Buying trade-offs

How PVC Truck Curtain Fabric Differs from Other Truck Covers

Two products may both protect a truck from rain while requiring very different construction. Matching the system is more important than matching the word “tarp.”

OptionBest-suited requirementTrade-off / verification
PVC-coated polyester side curtainMovable curtainsider panel with rail, buckle, printed branding and welded reinforcementsMore attention to fold behavior, seam layout, top attachment and strap wear
PE tarpaulin truck coverTemporary or cost-sensitive flat covers where lower weight may be valuableCheck expected cycles, puncture resistance, repair method and fasteners; not an interchangeable curtainsider system
Heavy-duty flatbed PVC tarpSteel, lumber and exposed cargo tied down from multiple sidesCut pattern, reinforcement and tie-down geometry differ from a side-track curtain
PVC laminated polyesterSome cover and panel applications where its construction meets technical requirementsDo not assume lamination has the same adhesion, welding or flex performance as a specific coated curtain grade

For higher loads and repeated use, review heavy-duty tarp constructions. Waterproofing requirements also depend on the finished seams and attachments; see the waterproof tarpaulin guide. Neither material weight nor a waterproof fabric claim makes the sidewall an approved cargo-restraint device.

Production approval

Quality Checks to Agree Before Bulk Curtain Orders

Good buyer quality control starts with a signed specification, retained approved sample and test methods appropriate to the route and system. The checklist below is a recommended acceptance plan—not a claim that every test is already included in a standard DER factory shipment.

STEP 01

Approve the fabric

Agree on weight tolerance, usable width, construction, shade, surface finish and minimum tensile/tear methods.

STEP 02

Qualify welding

Use the proposed hot-air, hot-wedge or HF process to check seam peel, heat sensitivity and appearance.

STEP 03

Prototype stress zones

Examine top hangers, lower straps, buckle patches, cut-outs, corner relief and fold behavior in a trial panel.

STEP 04

Check shipment consistency

Set roll IDs, lot traceability, dimensions, visual criteria, packing, labeling and agreed inspection records.

Common purchasing mistake: asking only for “900 GSM, waterproof”

That does not specify weave, tear resistance, low-temperature flexibility, adhesion, print finish, welding compatibility or reinforcement strength. For a specialized flame requirement, state the exact standard and market, then request applicable evidence; start with the flame-retardant fabric options rather than assuming all truck curtains qualify.

Who buys this product

Truck Curtain Applications and Procurement Priorities

Trailer body manufacturers

Need repeatable roll width and fabric properties for serial curtain-side vehicle construction. Specify top-rail design, process capability, QC acceptance and repeat color.

Logistics fleets and replacement shops

Need correctly fitting replacement curtains without downtime from wrong strap spacing. Prioritize clear measurements, hardware photos and a sample of the current curtain.

Tarpaulin and curtain fabricators

Need suitable coated fabric for cutting, welding, reinforcing and printing. Compare usable roll width, weld strength, yield and defect criteria before volume purchase.

Distributors and fleet branding partners

Need color consistency and printing-compatible lacquer. Define artwork placement, print process, repeatability, packaging identification and destination-market requirements.

Frequently asked questions

PVC Truck Curtain Buyer FAQs

Short answers to the questions truck curtain fabric manufacturers, trailer builders and replacement buyers ask before requesting a quote.

What is a PVC truck curtain made of?

A PVC truck curtain is normally made from high-tenacity woven polyester fabric coated with polyvinyl chloride (PVC) on both sides. The polyester supplies mechanical strength; the PVC provides a flexible, water-resistant outer surface. Finished curtains also need project-specific hems, reinforcements, tensioning straps and top attachments.

Is 650 GSM or 900 GSM better for a truck side curtain?

Neither is universally better. Around 650–750 GSM may suit curtains where lower handling weight and flexibility matter; 850–900 GSM is a common starting point for heavier-duty or larger side panels. Compare the fabric weave, tensile and tear results, coating adhesion, weld performance and total panel weight—not GSM alone.

Are PVC truck curtains waterproof?

Intact PVC-coated fabric is water-resistant and can be specified as waterproof material, but the finished curtain system depends on seams, overlaps, closures, edge construction and fitting. Ask for a seam sample and inspect the assembled trailer for water-entry paths.

Can a PVC curtainsider be printed with a company logo?

Yes, PVC-coated truck curtain fabrics can be supplied with printing-compatible finishes for fleet branding. Confirm ink technology, lacquer compatibility, artwork position, fold lines and abrasion zones with a printed sample before bulk production.

Can PVC truck curtain fabric be hot-air or high-frequency welded?

Many PVC-coated polyester fabrics can be joined by hot-air, hot-wedge or high-frequency welding. Actual processing settings and seam strength depend on the coating, thickness, reinforcement and equipment; qualify the proposed seam on production samples.

How do I measure a replacement truck side curtain?

Record the finished panel length and drop, top track or roller attachment, front and rear overlap, bottom buckle spacing, strap positions, vertical-pole locations and printing area. Send photos or a drawing of the old assembly; do not order from trailer nominal length alone.

Does a PVC side curtain replace cargo restraint?

No. A standard flexible side curtain should not be treated as a substitute for an approved cargo-restraint system. If your operation needs load-bearing body performance, specify the governing local requirements and obtain evidence for the complete vehicle or curtain system.

What are the MOQ, lead time and price for a custom PVC truck curtain?

MOQ, pricing and lead time depend on fabric weight, width, color, finish, printing, reinforcement, order quantity and supply format. Send your technical specification and destination to DER factory to receive a project-specific quotation; no fixed MOQ or delivery date is implied.

Factory sourcing · Project review

Get a PVC Truck Curtain Quote Matched to Your Trailer

Tell DER factory how the curtain will be opened, tensioned, printed and exposed to weather. This creates a more useful request than quoting only a GSM number.

Request A Quote

MOQ, sample timing, price, test availability and delivery schedule will be confirmed against the actual project.

Send these RFQ details

  • Truck type, route and climatic conditions
  • Roll fabric, panel or complete curtain request
  • Target GSM, strength requirements and roll width
  • Finished length, drop, track and buckle drawings
  • Color, surface lacquer and print artwork
  • UV, cold-flex or fire-test requirements, if any
  • Quantity, packaging and destination port
